Desktop SMT · OpenPnP · Built to order

PikkoBot
Vertex 4

Custom-built desktop pick-and-place machine — assembled, wired, and calibrated to order. Not a kit. Runs OpenPnP out of the box with pre-tuned JUKI nozzles.

$1,499 USD
Product price in USD · worldwide shipping quoted separately
PikkoBot Vertex 4 desktop pick-and-place machine
Custom-Built, Not a Kit
Pre-Calibrated JUKI Nozzles
OpenPnP Ready Out of Box
Global Shipping

Desktop PnP, Production-Ready

Built on the open-source LumenPnP platform, tuned for reliable operation from day one.

0402 to QFN64

Handles the full range of SMD components — from tiny 0402 passives up to QFN64 and larger ICs with consistent placement accuracy.

2,000–3,000 CPH

Theoretical throughput of up to 3,000 placements per hour — actual throughput depends on the board, components, feeder setup, and calibration.

500 × 400 mm Work Area

Largest work area in its class — fits multiple panels or large prototype boards without re-fixturing.

Dual Vision System

Top + bottom cameras with OpenPnP computer vision for accurate pickup, fiducial detection, and placement correction.

Dual JUKI Nozzle Head

Pre-calibrated dual-nozzle head compatible with standard JUKI nozzles — easy to source, easy to replace.

Free Documentation & Tools

Open-access multilingual wiki, browser-based hardware debug tool, and setup walkthrough — no account required.

Technical Specifications

Everything you need to know about the Vertex 4.

Placement Range0402 and up (see component size guide)
Theoretical ThroughputUp to 2,000–3,000 placements/hour, board-dependent
Work Area500 × 400 mm
CameraTop + bottom vision
NozzlesDual head, JUKI-compatible
ControllerVertex 4 mainboard, Marlin firmware
SoftwareOpenPnP (open-source)
Feeders IncludedOne set of manual tape feeders. Powered feeder options available separately.
Weight15 kg
PlatformBased on LumenPnP (CERN-OHL-W licensed)

From Order to Placement

Your machine, built and calibrated by us — not a box of parts.

1

Confirm Your Build

Email your requirements; confirm the configuration and schedule before ordering

2

Assembly & Testing

Build timing is confirmed in your quote; assembly and calibration follow the agreed schedule

3

Pre-Ship Calibration

Ships as a pre-assembled kit — minor assembly required on arrival

4

Unboxing Support

Assembly & calibration walkthrough with remote guidance

5

Ongoing Support

Technical support and after-sales service

6

Start Placing

Your boards, assembled faster than ever

How It Compares

An indicative comparison for planning. Prices, features, support, and performance vary by model and supplier.

DIY Kit

$800–1,200
  • You source & print parts
  • No calibration
  • Assembly support varies by supplier
  • OpenPnP software
  • Warranty varies by supplier

Vertex 4 ⭐

$1,499
  • Fully custom-built
  • Pre-calibrated JUKI nozzles
  • Remote setup guidance
  • OpenPnP pre-configured
  • Ongoing technical support
  • Camera configuration confirmed in your quote

Industrial Machine

$15,000+
  • High throughput
  • Power requirements vary by model
  • Large footprint
  • Expensive service contracts
  • Model-specific software and service

Feeders & Accessories

Power up your Vertex 4 with the right feeder system. We offer two types — pick the one that fits your workflow.

PikkoBot Powered Feeder — Steel Plate
Steel-Plate Design

Powered Feeder

Full steel-plate construction for superior durability and deformation resistance. Powered feed mechanism for repeatable, reliable tape advancement — ideal for production runs.

  • ✓ Confirm tape width and machine compatibility by email
  • ✓ 4-pack configuration
  • ✓ Confirm rail and controller compatibility before ordering
  • ✓ Availability and dispatch timing quoted by email
$299 USD · 4-pack (8/12 mm)
View Powered Feeder →
PikkoBot AS2 Servo Feeder
Best Value

AS2 Servo Feeder

Based on the proven 0816-style feeder design with key upgrades: full-metal-gear servo, redesigned pressure block to reduce part-jumping, and easier tape loading. Starter Kit includes control board + USB hub for up to 16 feeders.

  • ✓ Confirm tape width and machine compatibility by email
  • ✓ Full-metal-gear servo (no plastic gears)
  • ✓ Improved anti-jump pressure block
  • ✓ Starter Kit includes all electronics
$219 USD · 8 mm Starter Kit (4 feeders + electronics)
View AS2 Servo Feeder →
Powered FeederAS2 Servo Feeder
MaterialFull steel platePETG (near-100% infill)
DrivePowered mechanismFull-metal-gear servo
Starting Price$299$219
Best ForProduction durabilityBest value & easy start
Tape WidthsConfirm configurationConfirm configuration
Electronics NeededCompatible controllerStarter Kit includes
Shop →Shop →

Need nozzle sets, a head module, or other parts? Browse all products →

Who Is This For?

🛠️ Hardware Startups

Running prototype and low-volume production (under ~500 boards/month). Get boards assembled in-house without waiting on contract manufacturers.

🔬 R&D Labs

Iterate faster with same-day assembly. Change a resistor value at 4 PM and have the new board tested by dinner.

🎓 Makers & Educators

Want OpenPnP flexibility without the build headache. Teach SMT assembly with real industrial tools on a desktop budget.

🏭 Low-Volume Production

Batches of 10–500 boards that don't justify a full production line. See how we compare to industrial machines →

See the Machine

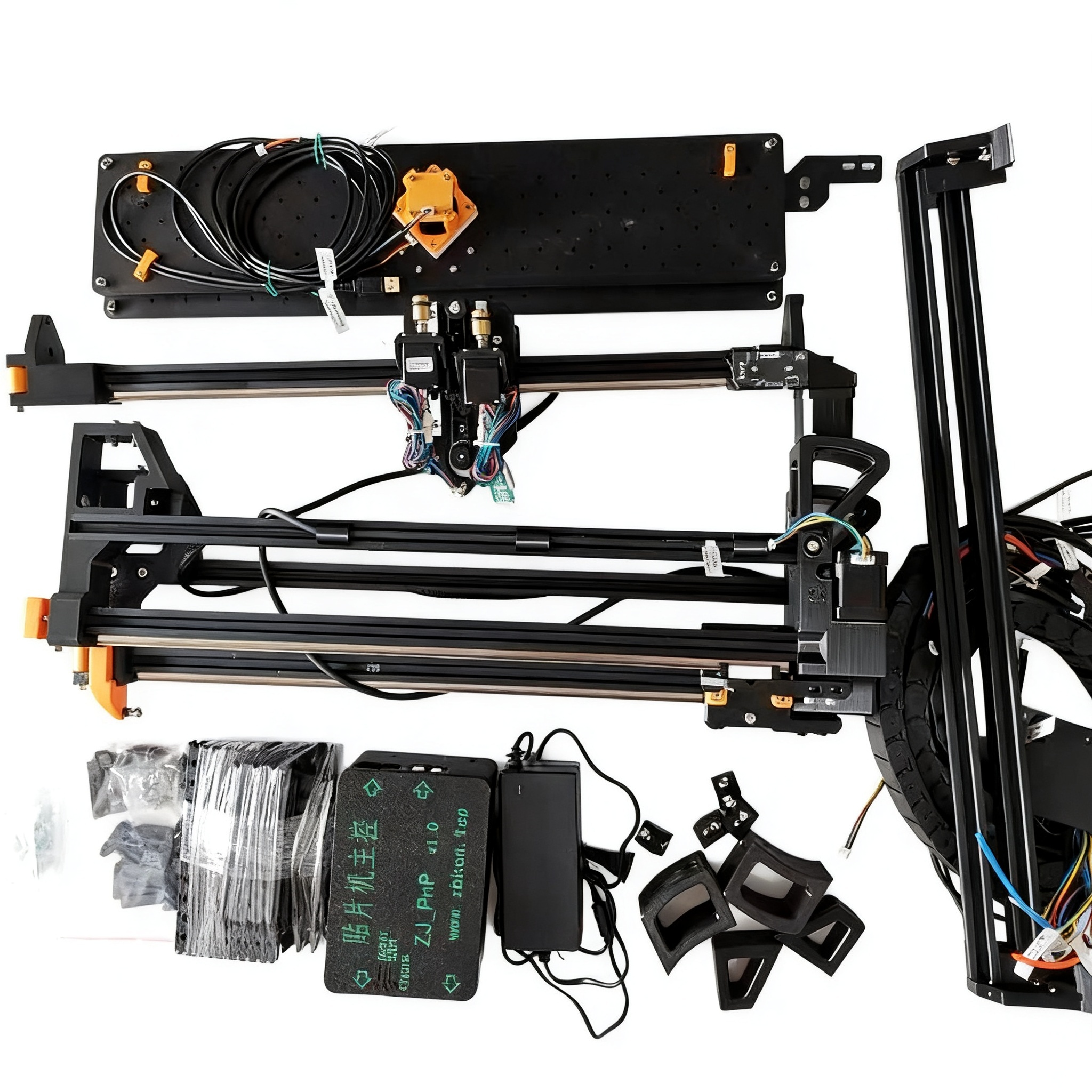

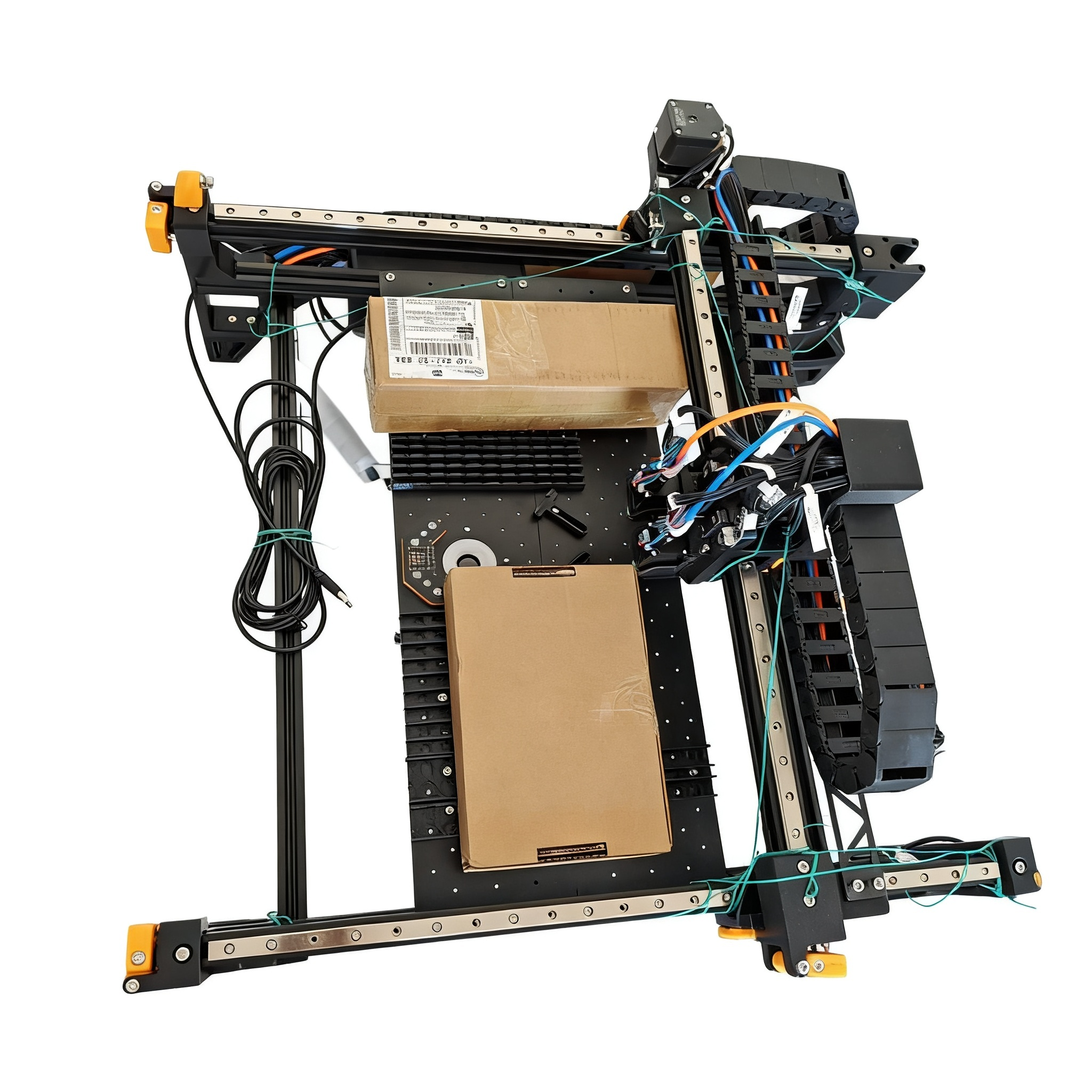

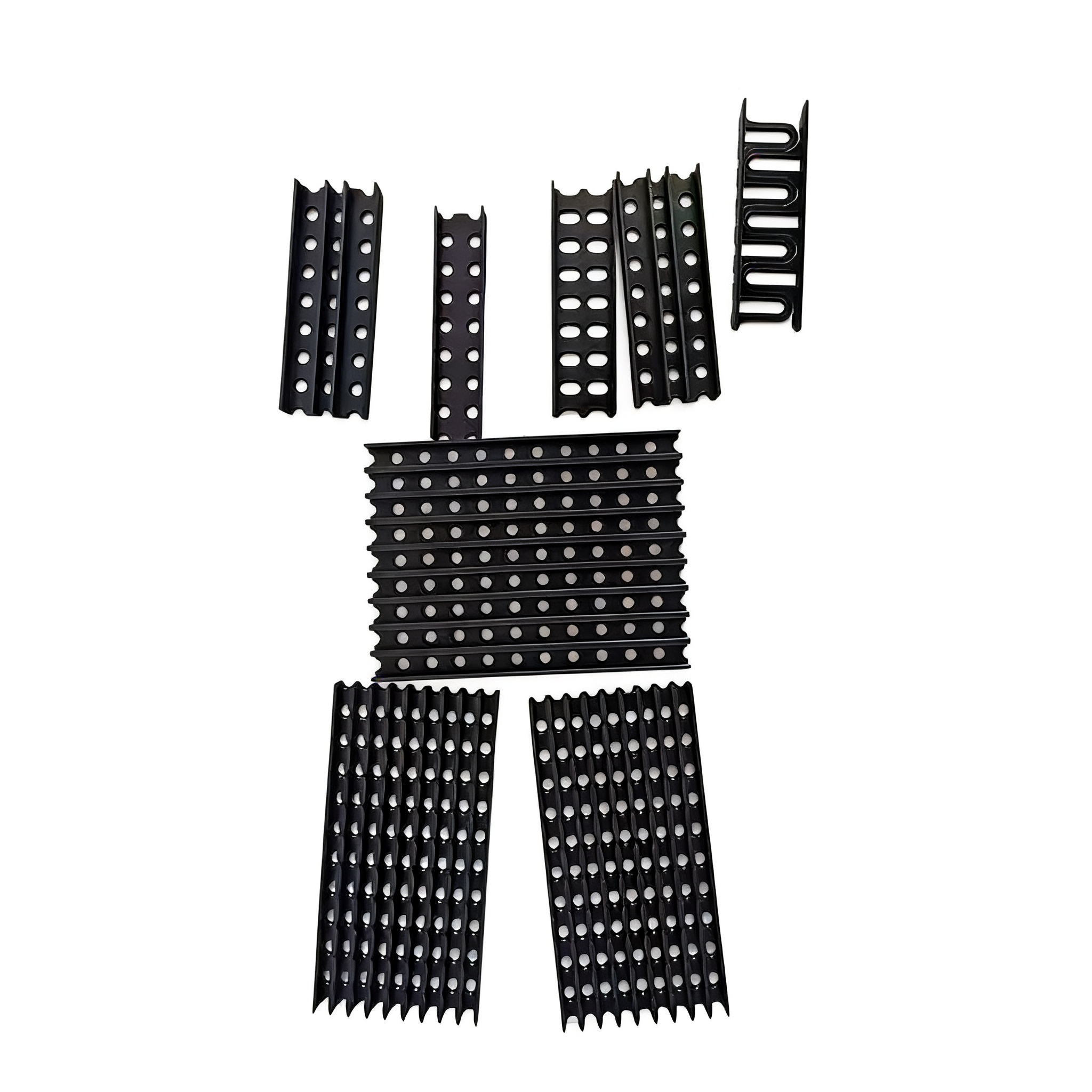

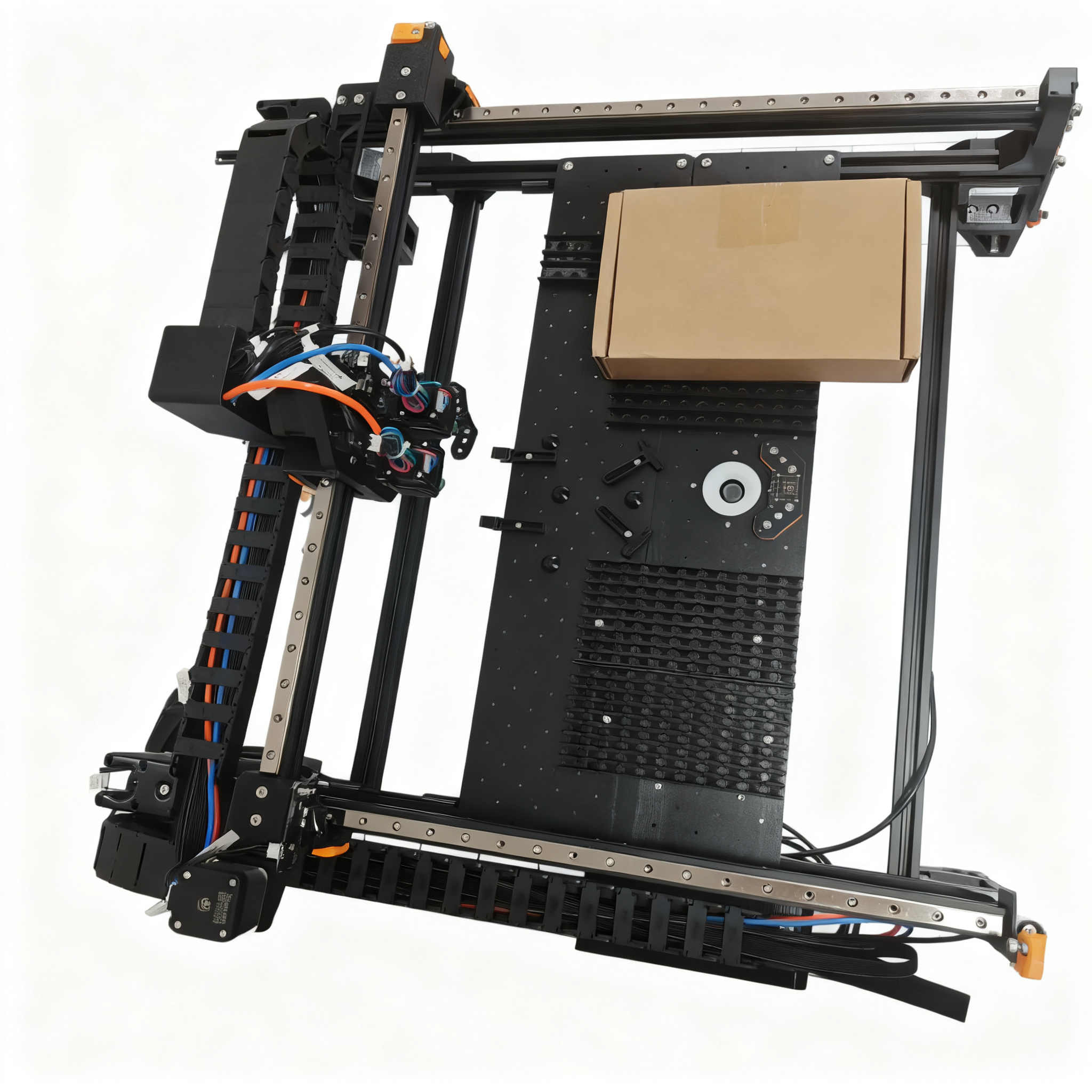

Vertex 4 left side Vertex 4 right side Vertex 4 packaged Strip feeder detail

Frequently Asked Questions

Is this a kit or a ready-to-use machine?

The Vertex 4 is custom-built, wired, and calibrated to order — not a DIY kit. It ships as a pre-assembled kit: the major subsystems are built and tested, and you only need minor assembly on arrival (with remote guidance). We provide remote guidance every step of the way.

What software does it run?

OpenPnP — the leading open-source pick-and-place software. Your machine arrives with a pre-tuned configuration for JUKI nozzles and standard SMD placement. No license fees, ever.

Can it really place 0402 components?

Yes. The Vertex 4 reliably handles 0402 passives and larger components up to QFN64. Placement accuracy depends on proper setup and calibration — which we do before shipping. Read our detailed component size guide →

How does it compare to industrial machines?

Industrial machines (JUKI, Yamaha, etc.) run faster (10,000+ CPH) but cost $15,000+ used, can require industrial power, take up significant floor space, and may use proprietary control systems. The Vertex 4 is designed for prototyping and low-volume production — where flexibility, low cost, and open-source software matter more than raw speed. Read our honest comparison →

How do I order?

Send an email inquiry with your required configuration and delivery country. Our product prices are listed in USD. Email us to confirm configuration, availability, build schedule, and shipping before ordering. Online checkout is not available on this site.

Do you ship internationally?

Yes. We ship worldwide. The machine weighs 15 kg and ships as a pre-assembled kit to keep freight costs down — minor assembly required on arrival, with full remote guidance.

What support do I get after purchase?

You get unboxing support with remote guidance, ongoing technical support, and access to our free multilingual documentation at wiki.pikkobot.com .

Ready to Put Down the Tweezers?

Stop hand-placing components. Get a custom-built Vertex 4 — calibrated, supported, and ready to assemble your boards from day one.

Request a quote →

Confirm your configuration, build schedule, and shipping before ordering.
