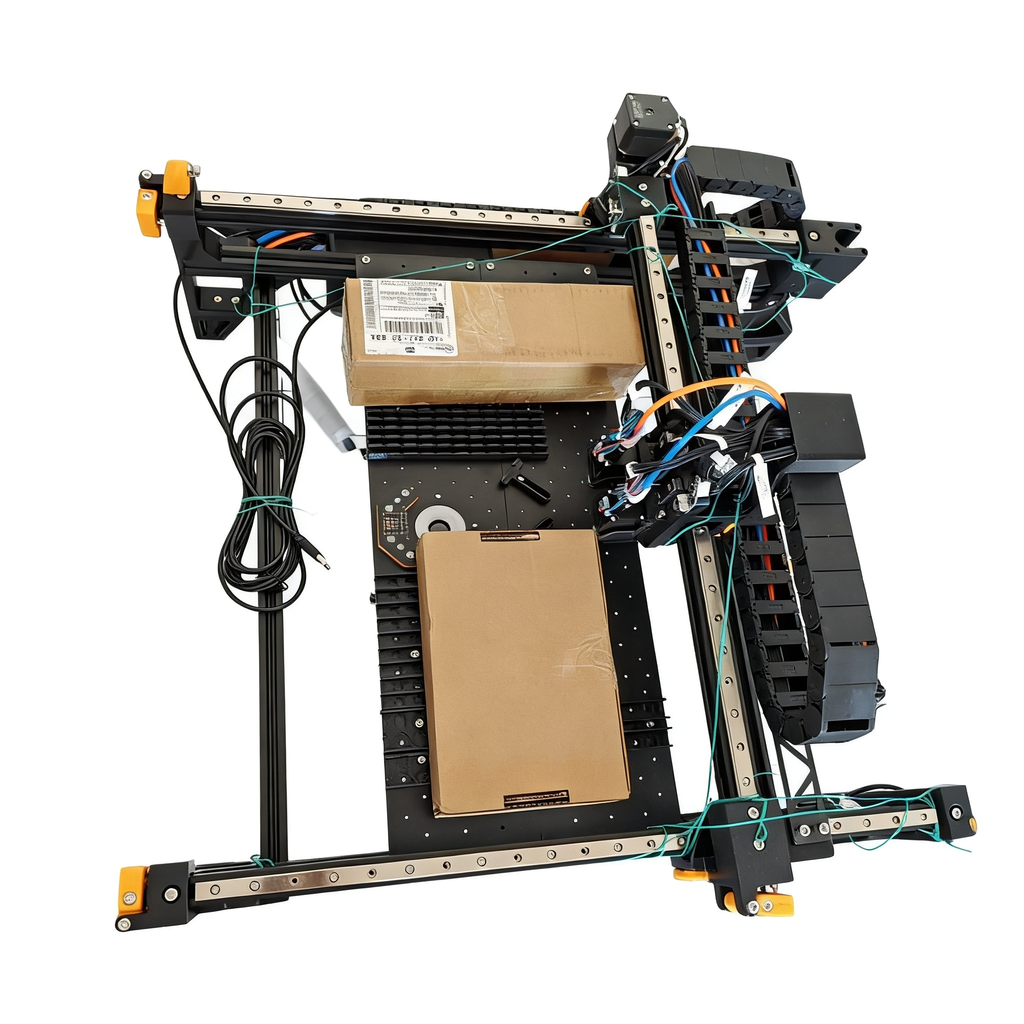

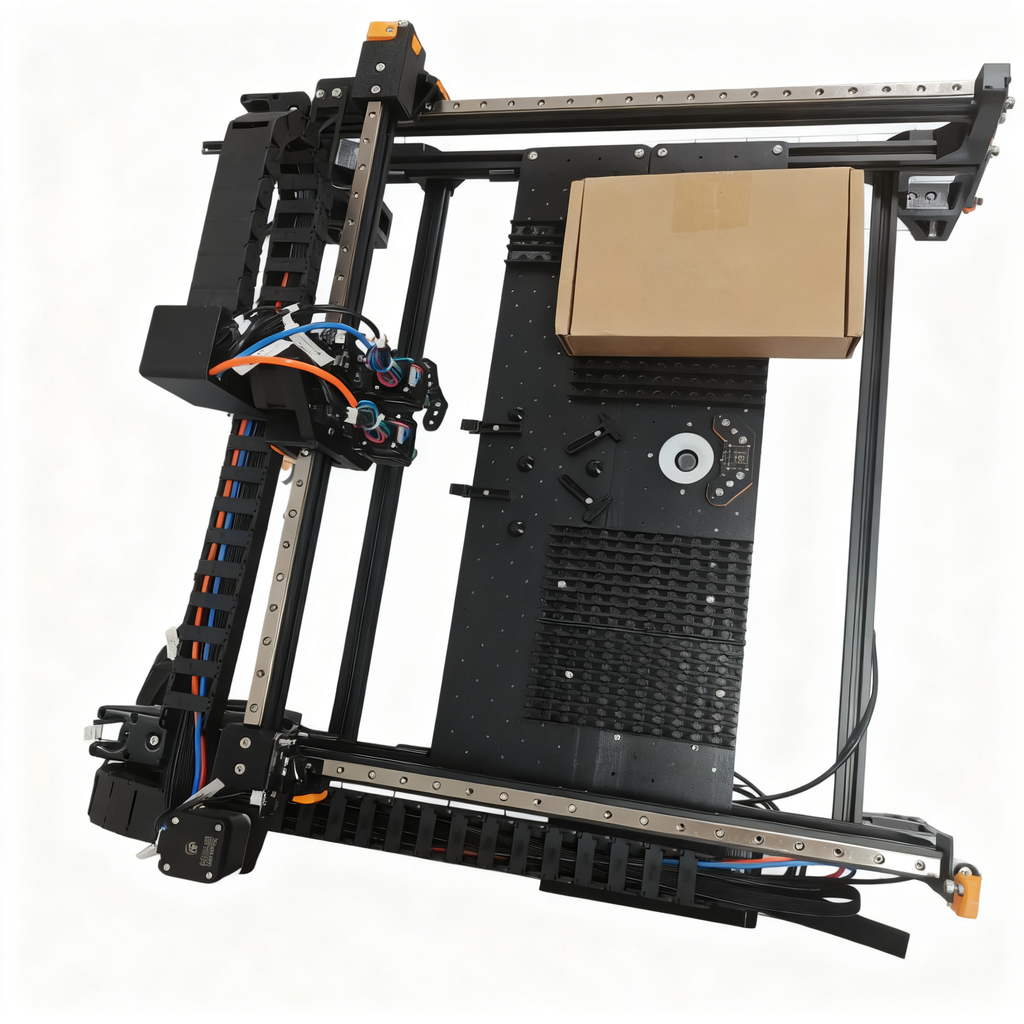

Vertex 4 — Desktop Pick-and-Place Machine

A custom-built desktop pick-and-place machine for SMT prototyping and low-volume assembly. Assembled, wired, and calibrated to order, with remote setup guidance.

PikkoBot Vertex 4

Machines

$1,499 USD

Product price in USD. Shipping is quoted separately. Email us to confirm configuration, availability, and build schedule.

  • OpenPnP software, with no software licence fee
  • 500 × 400 mm work area
  • Vertex 4 mainboard with Marlin firmware
  • Machine weight: 15 kg

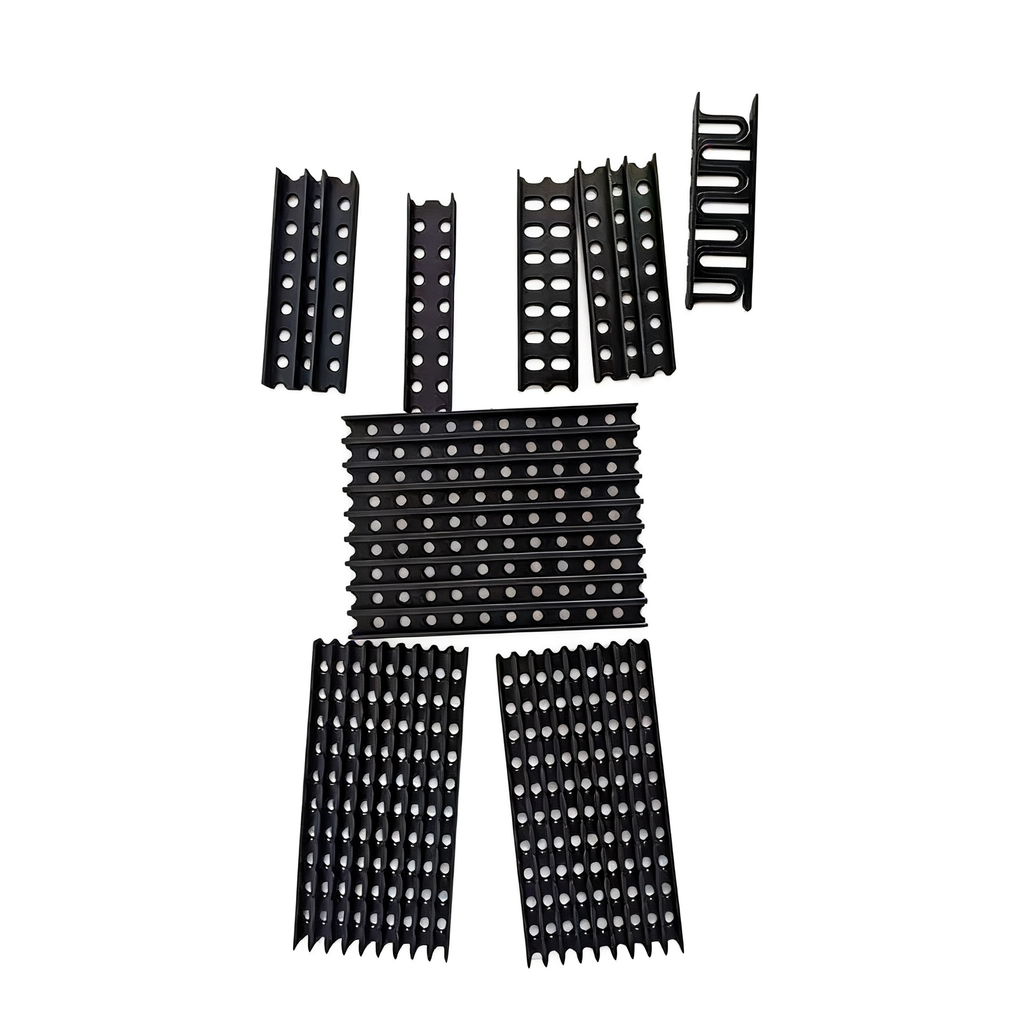

  • Includes one set of manual strip feeders
  • Dual nozzle head with JUKI-compatible nozzles
  • Top and bottom cameras for vision alignment
  • 0402 and larger components; placement results depend on setup and calibration
  • Theoretical 2,000–3,000 CPH; actual throughput depends on the board and configuration

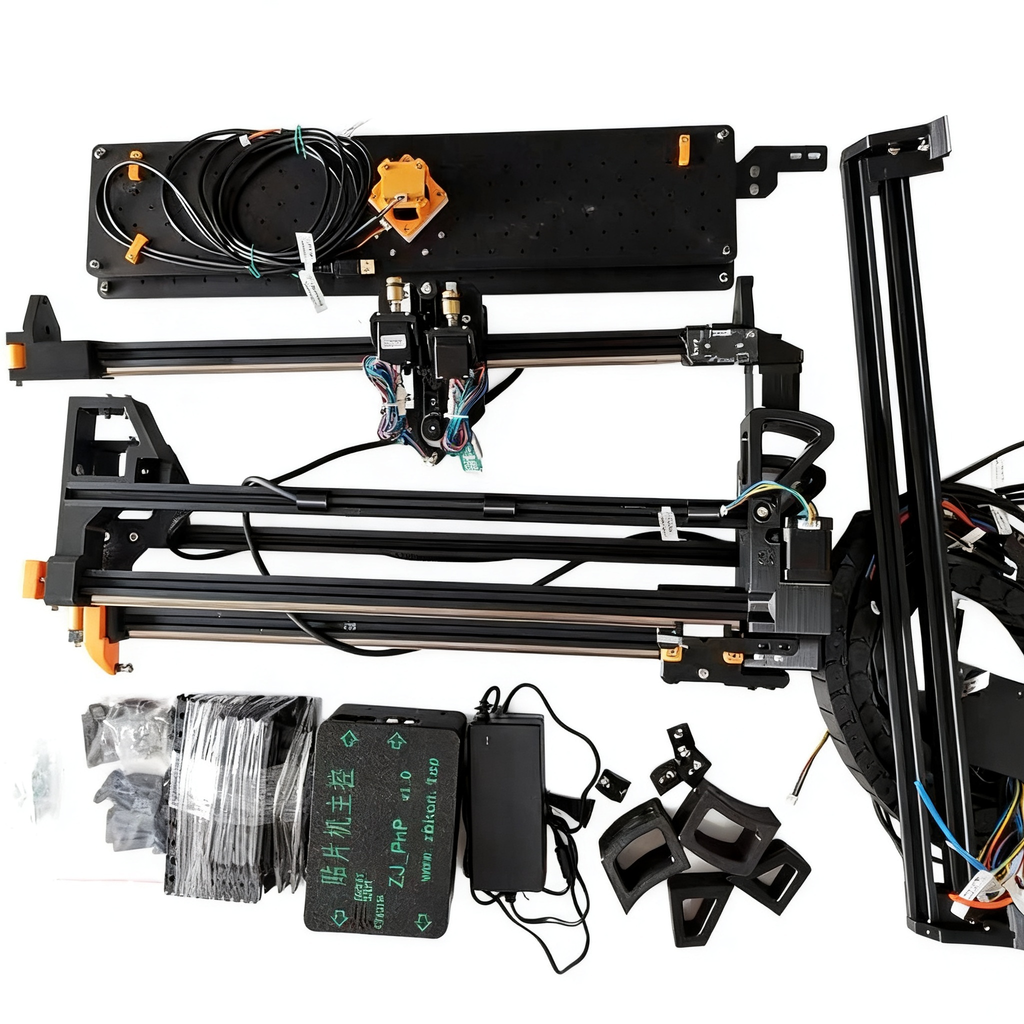

  • Ships with major subsystems assembled; minor assembly and setup required on arrival
Request a quote →

Prefer email? [email protected]

Share your quantity, delivery country, machine model, and required configuration. No payment is collected on this website.

Setup and calibration documentation ↗
